產品詳情Product details

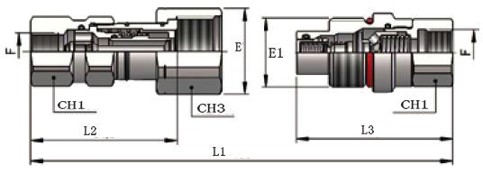

PST4系列快速接頭-帶壓操作連接
|
DN
|
CH1
|
CH3
|
E
|
E1
|
L1
|
L2
|
L3
|
標準流量L/M
|
最大流量L/M
|
工作壓力MPA
|
F
|
陰接頭.(F)
|
陽接頭.(M)
|
|
06
|
22
|
36
|
39
|
M30×2
|
116.5
|
59.5
|
67.5
|
12
|
24
|
45
|
G 1/4
|
PST4.0606.112
|
PST4.0606.113
|
|
1/4 NPT
|
PST4.0606.012
|
PST4.0606.013
|
|
10
|
30
|
38
|
41.7
|
M33×2
|
133.4
|
75.1
|
74
|
23
|
46
|
35
|
G 3/8
|
PST4.1010.112
|
PST4.1010.113
|
|
3/8 NPT
|
PST4.1010.012
|
PST4.1010.013
|
|
13
|
30
|
38
|
41.7
|
M33×2
|
133.4
|
75.1
|
74
|
23
|
46
|
35
|
G 1/2
|
PST4.1313.112
|
PST4.1313.113
|
|
1/2 NPT
|
PST4.1313.012
|
PST4.1313.013
|
|
20
|
36
|
46
|
49.7
|
M40×3
|
158
|
84.8
|
90.5
|
45
|
90
|
35
|
G 3/4
|
PST4.2019.112
|
PST4.2019.113
|
|
3/4 NPT
|
PST4.2019.012
|
PST4.2019.013
|
|
25
|
41
|
55
|
60
|
M50×3
|
184.5
|
99
|
107
|
100
|
200
|
35
|
G 1
|
PST4.2525.112
|
PST4.2525.113
|
|
1 NPT
|
PST4.2525.012
|
PST4.2525.013
|
|
30
|
55
|
65
|
70
|
M58×3
|
214.7
|
111
|
126.5
|
189
|
280
|
35
|
G 1-1/4
|
PST4.3031.112
|
PST4.3031.113
|
|
1-1/4 NPT
|
PST4.3031.012
|
PST4.3031.013
|
|
39
|
70
|
90
|
99.5
|
TR80×4
|
246
|
119.5
|
153.6
|
379
|
700
|
30
|
G 1-1/2
|
PST4.3939.112
|
PST4.3939.113
|
|
1-1/2 NPT
|
PST4.3939.012
|
PST4.3939.013
|
產品應用Applications
快速接頭十分適用于高壓情況下的液壓回路，如土方設備等。該系列可應用于帶特殊裝配的挖掘機，如帶打樁錘、抓機。其它應用還包括油田鉆機以及許多帶有配件的工程機械。
產品特征product features
表面處理：鍍鋅鐵（三價鉻）-鍍鋅鎳、標準密封：NBR丁腈橡膠-PU聚氨酯、操作壓力：350-400bar、帶壓連接：公頭母頭都可帶壓連接
材料：碳鋼，鍍鋅鐵（三價銘）-鍍鋅鎳.
規格：1/4“-1-1/2”、螺紋：NPT，BSP（G）、
工作溫度：-25℃~+100℃、密封件： EPDM,FKM可選密封件、
主要替換品牌：Stucchi VEP、最大殘留壓力：350 bar
