產品詳情Product details

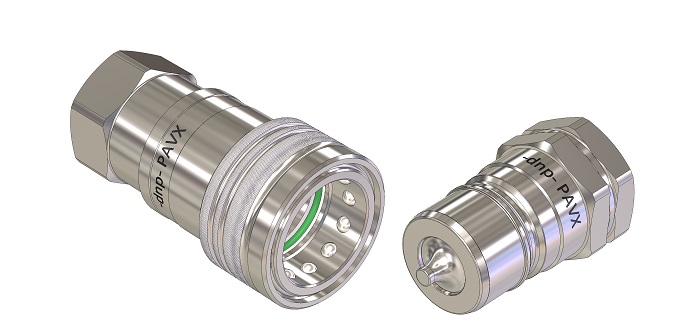

PAVX系列不銹鋼快速接頭
|
DN
|
CH1
|
E
|
E1
|
L1
|
L2
|
L3
|
標準流量L/M
|
最大流量L/M
|
工作壓力MPA
|
F
|
陰接頭.(F)
|
陽接頭.(M)
|
|
06
|
19
|
26
|
13
|
70
|
49
|
35
|
12
|
24
|
25
|
G 1/4
|
PAVX.0606.002
|
PAVX.0606.003
|
|
1/4 NPT
|
PAVX.0606.012
|
PAVX.0606.013
|
|
10
|
22
|
30
|
18.4
|
85
|
60.5
|
42.5
|
23
|
46
|
25
|
G 3/8
|
PAVX.1010.002
|
PAVX.1010.003
|
|
3/8 NPT
|
PAVX.1010.012
|
PAVX.1010.013
|
|
13
|
27
|
38
|
23.75
|
96
|
70
|
48
|
45
|
90
|
25
|
G 1/2
|
PAVX.1313.002
|
PAVX.1313.003
|
|
1/2 NPT
|
PAVX.1313.012
|
PAVX.1313.013
|
|
20
|
34
|
45
|
30.5
|
114
|
84.5
|
57
|
106
|
220
|
25
|
G 3/4
|
PAVX.2019.002
|
PAVX.2019.003
|
|
3/4 NPT
|
PAVX.2019.012
|
PAVX.2019.013
|
|
25
|
41
|
52
|
36.6
|
131
|
99
|
65.5
|
189
|
260
|
20
|
G 1
|
PAVX.2525.002
|
PAVX.2525.003
|
|
1 NPT
|
PAVX.2525.012
|
PAVX.2525.013
|
|
30
|
50
|
70
|
47.8
|
150
|
117
|
75
|
280
|
370
|
15
|
G 1-1/4
|
PAVX.3031.002
|
PAVX.3031.003
|
|
1-1/4 NPT
|
PAVX.3031.012
|
PAVX.3031.013
|
|
39
|
60
|
82
|
57.6
|
167
|
133
|
84
|
379
|
757
|
6
|
G 1-1/2
|
PAVX.3939.002
|
PAVX.3939.003
|
|
1-1/2 NPT
|
PAVX.3939.012
|
PAVX.3939.013
|
|
50
|
75
|
99
|
70
|
216
|
169
|
108
|
757
|
1000
|
5
|
G 2
|
PAVX.5051.002
|
PAVX.5051.003
|
|
2 NPT
|
PAVX.5051.012
|
PAVX.5051.013
|
產品應用Applications
該系列特別適用于海工船舶、特殊環境高溫、高壓、惡劣場所工業應用、特性：7241-1A系列接頭可以與ISO標準的所有接頭互換，有一個隔斷閥，四氟密封和支撐環；插拔實驗和疲勞試驗均達到歐洲標準。一般由閥體不銹鋼制成；安全系列：4：1 密封件：氟膠密封圈及純聚四氟乙烯支撐環.
產品特征product features
材料:316不銹鋼、規格：1/4“-2”、螺紋：NPT，BSP（G）、表面處理：電解拋光工藝、工作溫度：-25℃~+200℃
